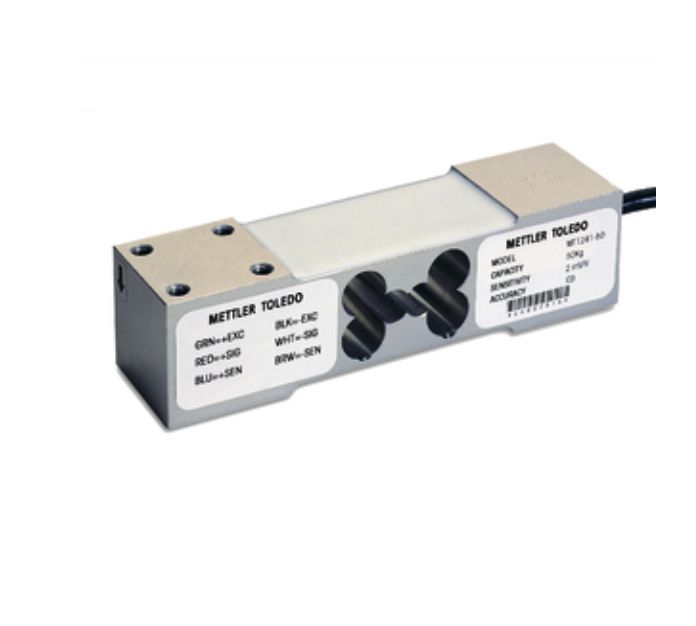

Name: 100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: سلول بار MT1241-100kg 2m
Availability: InStock

خانه محصولات

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

جزئیات محصول:

محل منبع:	چین
نام تجاری:	Mettler Toledo
شماره مدل:	سلول بار MT1241-100kg 2m

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	قابل مذاکره
جزئیات بسته بندی:	جعبه کارون
زمان تحویل:	10-30 روز
قابلیت ارائه:	2000 ست در ماه

مخاطب

توضیحات محصول جزئیات

محصول:	سلول حمل متلر توليدو	حداکثر ظرفیت:	220 پوند (100 کیلوگرم)
مواد:	آلومینیوم ، منفعل	اندازه شناسی:	NTEP III 5،000D OIML C3
دقت:	استاندارد	رتبه حفاظتی:	IP67
اندازه سکوی (LXW):	400 میلی متر x 400 میلی متر	قابلیت اتصال:	آنالوگ
کابل:	6.6 فوت (2 متر)
برجسته کردن:	100kg load cell with 2m cable,precision industrial weight sensor,Mettler Toledo load cell with warranty , precision industrial weight sensor , Mettler Toledo load cell with warranty

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Key Features

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh industrial environments
Includes ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

The MT1241 compression weigh module is designed for industrial weighing applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for platform scales, tank weighing, hopper systems, and silo applications.

With a capacity range from 3 kg to 300 tons, these load cells are particularly suited for mid-size platforms. The MT1241 model features reliable strain gauge technology using premium aluminum materials to ensure long-term performance and accuracy.

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Material Number	71207453
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC
