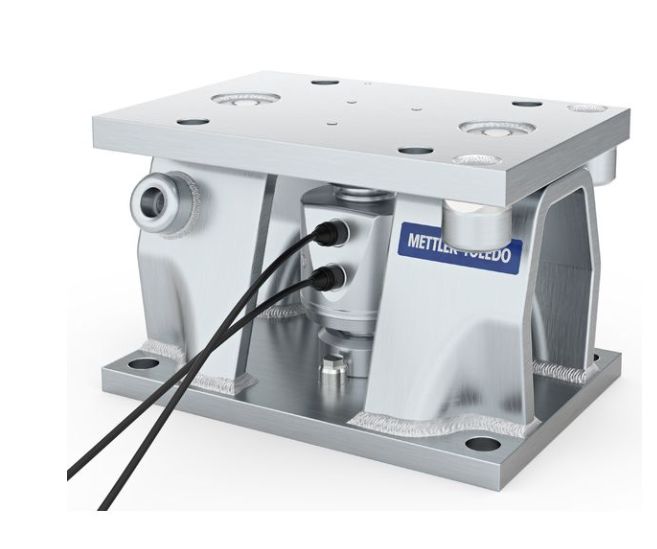

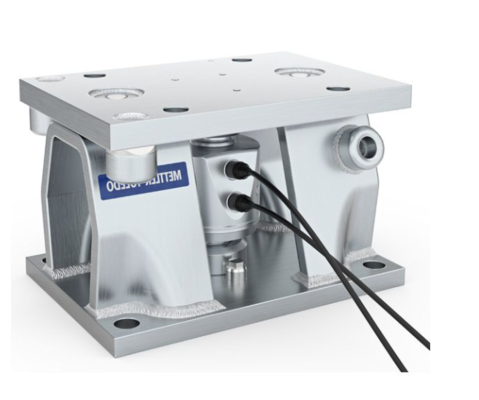

Name: Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: ماژول وزن SWC615-A SS 20T
Availability: InStock

خانه محصولات

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

جزئیات محصول:

محل منبع:	چین
نام تجاری:	Mettler Toledo
شماره مدل:	ماژول وزن SWC615-A SS 20T

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
قیمت:	قابل مذاکره
جزئیات بسته بندی:	جعبه کارون
زمان تحویل:	10-30 روز
قابلیت ارائه:	2000 ست در ماه

مخاطب

توضیحات محصول جزئیات

محصول:	سلول حمل متلر توليدو	حداکثر ظرفیت:	110،000 پوند (50،000 کیلوگرم)
مواد:	فولاد ضد زنگ V2A (AISI 304)	اندازه شناسی:	OIML C3 ، NTEP IIIL 10،000
سلول بارگذاری:	POWERCELL PDX	دقت:	استاندارد
رتبه حفاظتی:	IP68/69k	محیط / مواد:	شستشو / فولاد ضد زنگ
تصویب خطرناک:	atex ， fm	قربانی:	نظارت بر وضعیت
برجسته کردن:	Stainless steel weigh module 20t,Industrial load cell sensor,Mettler Toledo load cell with warranty , Industrial load cell sensor , Mettler Toledo load cell with warranty

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell for all applications.

Enhanced Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68 load cells for maximum reliability.

Condition Monitoring

Monitor individual load cells for overload, temperature, zero drift, and other parameters to prevent system shutdowns or measurement errors.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
