خانه محصولاتAutomatic Checkweigher

CM Washdown Integrated Product Inspection for Wet Environments

CM Washdown Integrated Product Inspection for Wet Environments

جزئیات محصول:
محل منبع: چین
نام تجاری: Mettler Toledo
شماره مدل: ترکیب CM
پرداخت:
مقدار حداقل تعداد سفارش: 1 ست
قیمت: قابل مذاکره
Packaging Details: Caron box
زمان تحویل: 10-30 روز
Supply Ability: 2000 set per month
مخاطب
توضیحات محصول جزئیات
محصول: ترکیب سانتی متر نوع بسته بندی: کیف ، بطری ، بسته ، کارتن ، موارد ، بسته های جریان ، سینی ها
برنامه بازرسی: تشخیص آلودگی ، تشخیص بدن خارجی ، کنترل وزن مشخصه محصول: بسته های یخ زده ، خشک و متوسط ، بزرگ ، باز ، ظرف گرد ، محصولات کوچک بسته بندی شده ، بسته های متوسط م
صنعت: شیمیایی ، مواد غذایی و آشامیدنی ، فلز ، پلاستیک و الکترونیک ، داروسازی و بیوتکنولوژی دقت سنجی: از 0.05 ± گرم
بخش صنایع: نانوایی و شیرینی پزی ، آبجو ، شراب و سایر نوشیدنی های الکلی ، مواد آرایشی ، لبنیات حداکثر وزن محصول: 10 کیلوگرم
حداکثر سرعت خط: 180 متر در دقیقه توان حداکثر: 800 ppm
برجسته کردن:

washdown integrated load cell,wet environment product inspection,Mettler Toledo washdown load cell

,

wet environment product inspection

,

Mettler Toledo washdown load cell

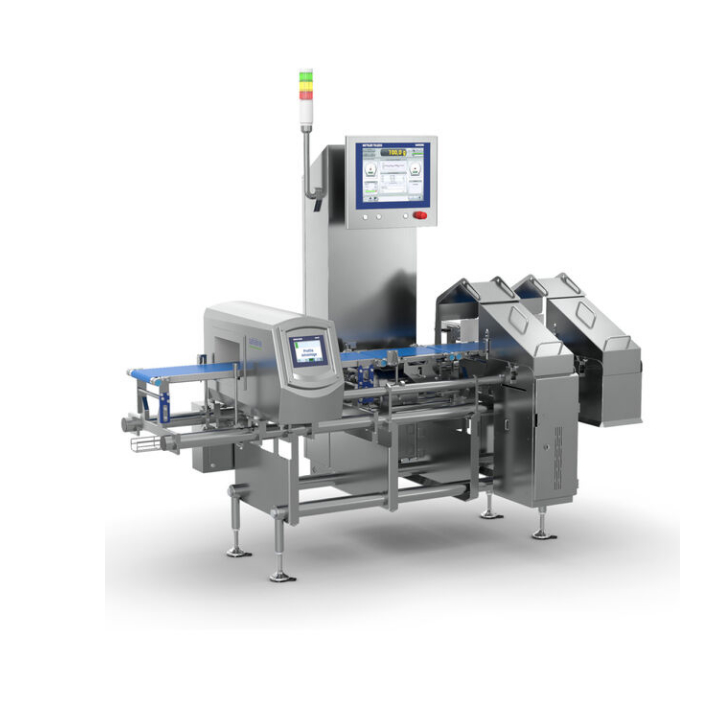

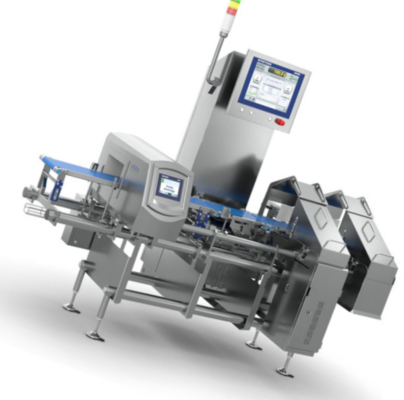

CM Washdown Integrated Product Inspection for Wet Environments
Product Overview

The CM Washdown Combination system is an integrated, rugged solution designed for product inspection in challenging wet and washdown environments. This two-in-one system combines a high-precision checkweigher with a sensitive metal detector in a single, robust frame, making it ideal for the food processing, meat, poultry, and dairy industries where hygiene and sanitation are paramount.

Key Features
  • 2-in-1 Solution: Combined metal detection and precision weighing system - the ideal critical control point for harsh washdown environments
  • Compact, Easy-to-clean Design: Sloped surfaces prevent liquid retention to minimize bacterial contamination, along with tool-less parts assembly offers easy maintenance
  • Compliance for Food Standards: All materials with direct food contact fully comply with Regulation (EC) 1935/2004, (EU) 10/2011 and FDA regulations for food safety
  • Reduced Cleaning Downtime: Quick, tool-less, failsafe disassembly and assembly of the metal detector and weighing conveyors supports rapid cleaning processes
Product Specifications
Material No: 2499000500
IP Rating: IP69
Compatible Software: ProdX
Connectivity: Ethernet TCP/IP, Fieldbus, OPC UA
Inspection Solution: Checkweighing-Metal Detection
Max Product Width: 400 mm
Max Weighing Zones: 7
Weighing Technology: EMFR, Strain Gauge
HMI: 12" Touchscreen, 15" Touchscreen, 7" Touchscreen
Max Product Height: 200mm
Frequencies: Dual Simultaneous up to 300 kHz, up to 600 kHz, up to 800 kHz
Product Attributes
Attribute Value
Product CM Combination
Packaging Type Bags, Bottle, Bundles, Cartons, Cases, Flow Packs, Trays
Inspection Application Contamination Detection, Foreign Body Detection, Weight Control
Product Characteristic Deep Frozen, Dry, Medium-Large Packages, Open, Round Container, Small Individual Wrapped Products, Small-Medium Packages, Wet
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech
Weighing Accuracy from ±0.05 g
Industry Segment Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Cosmetics, Dairy
Max Product Weight 10 kg
Max Line Speed 180 m/min
Max Throughput 800 ppm
